Technology

Pioneering Technologies

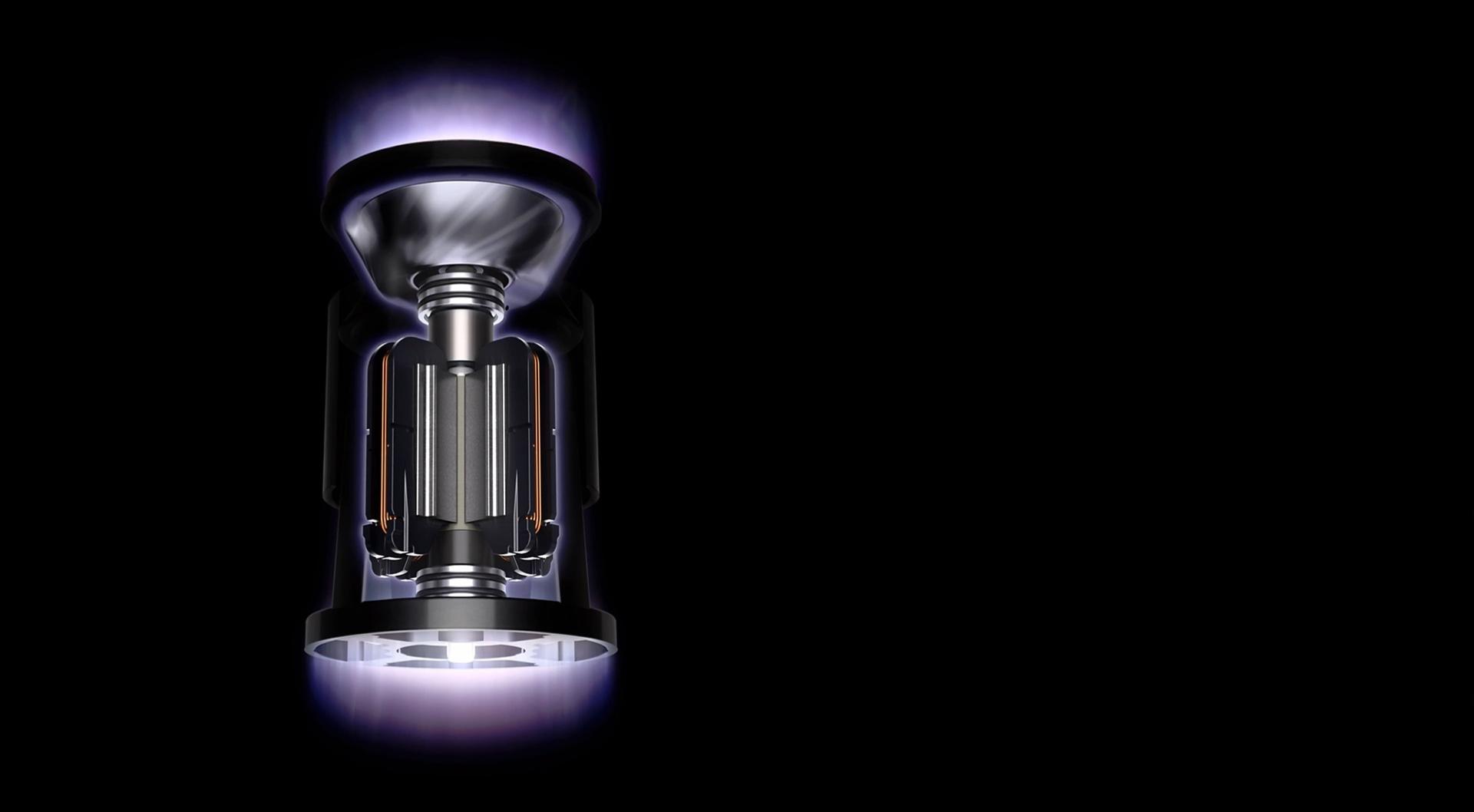

The Dyson digital motor V10.

The smallest, lightest, yet strongest motor Dyson has ever produced. Its ceramic shaft is cured at 1,600°C to make it 3 times harder than steel, yet with half the density. With the impeller moved from the front of motor to the back, axial flow draws in cooler air to reduce the temperature and allow the motor to spin at up to 125,000rpm. Which generates the suction power of a full-size vacuum.¹

  • 880 Layers of paper-thin laminated steel generate magnetic fields to spin the motor.
  • 79,000 G-force generated inside each of the 14 cyclones.

"At Dyson, it’s invention that sets us apart. Cyclones that generate 79,000g to separate dust. Pioneering digital motors that are smaller, faster and more powerful than anything before. It’s our obsession. That’s why nothing else really works like a Dyson."

Engineer James Dyson

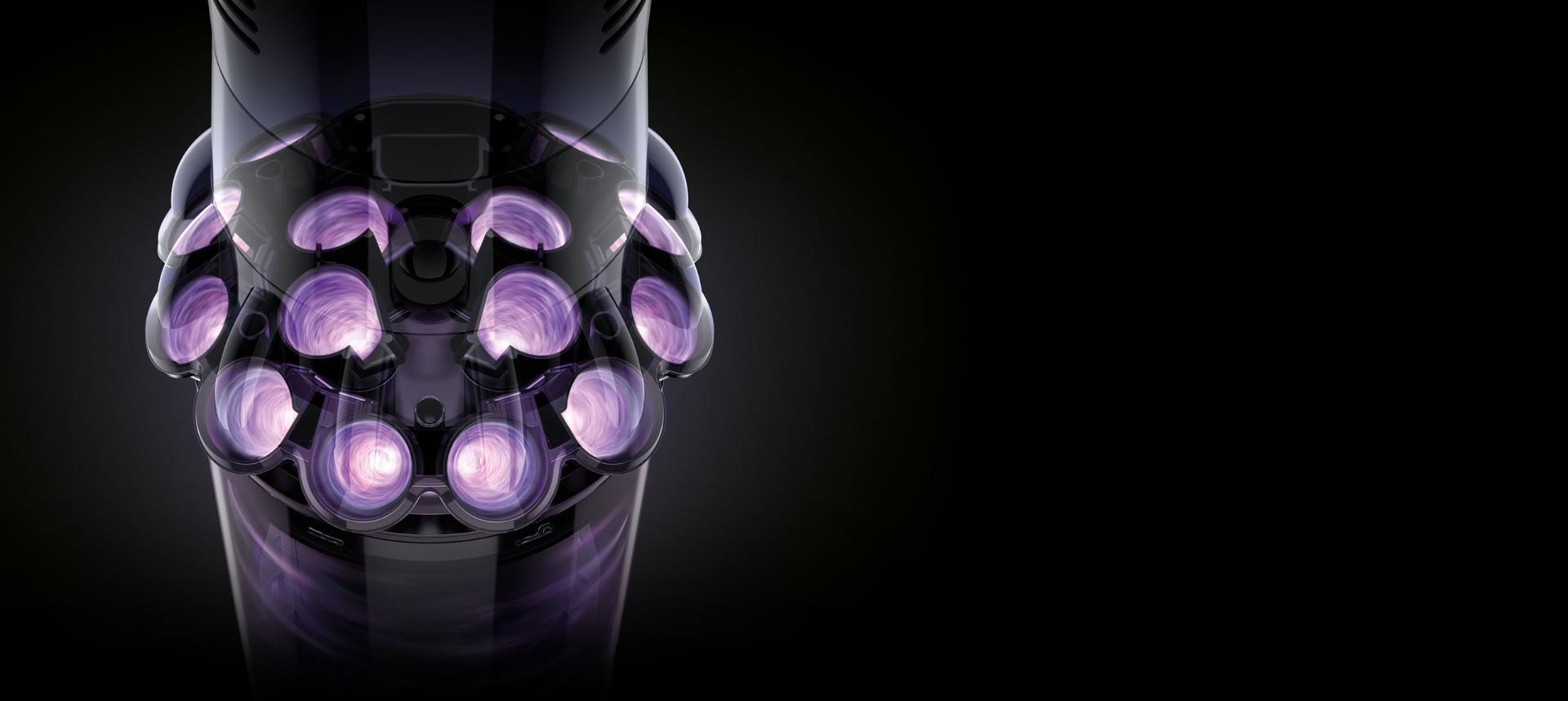

14 cyclones.

Generating forces of more than 79,000g, the vacuum flings microscopic particles – such as pollen and even bacteria – into the bin. By arranging each of the 14 cyclones concentrically around the central axis of the machine, air flows more efficiently through it. As the cyclone narrows, air is accelerated from 72km/h to 190km/h to create the centrifugal forces that capture fine particles.

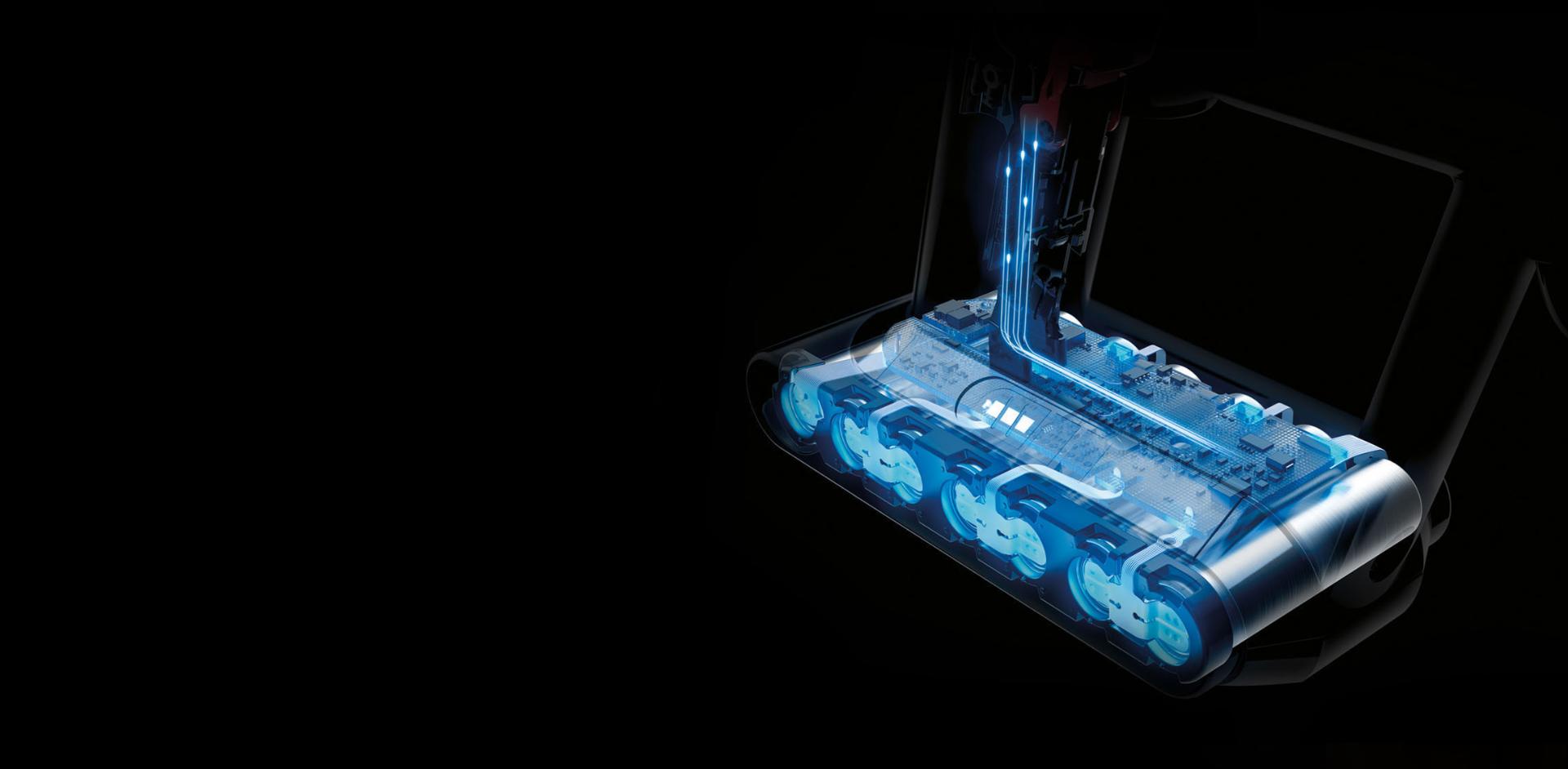

7-cell, energy-dense battery.

The Dyson Cyclone V10™ vacuum’s lithium-ion battery has one more cell than the Dyson V8™ vacuum, to run at a higher voltage and create more power. But because each of the seven high-capacity, nickel-cobalt-aluminium cathodes is slightly smaller, there’s no additional weight. Innate LED system diagnostics and altitude sensors enable the machine to automatically optimise power to the cleaner head at all times. So suction power doesn't fade.

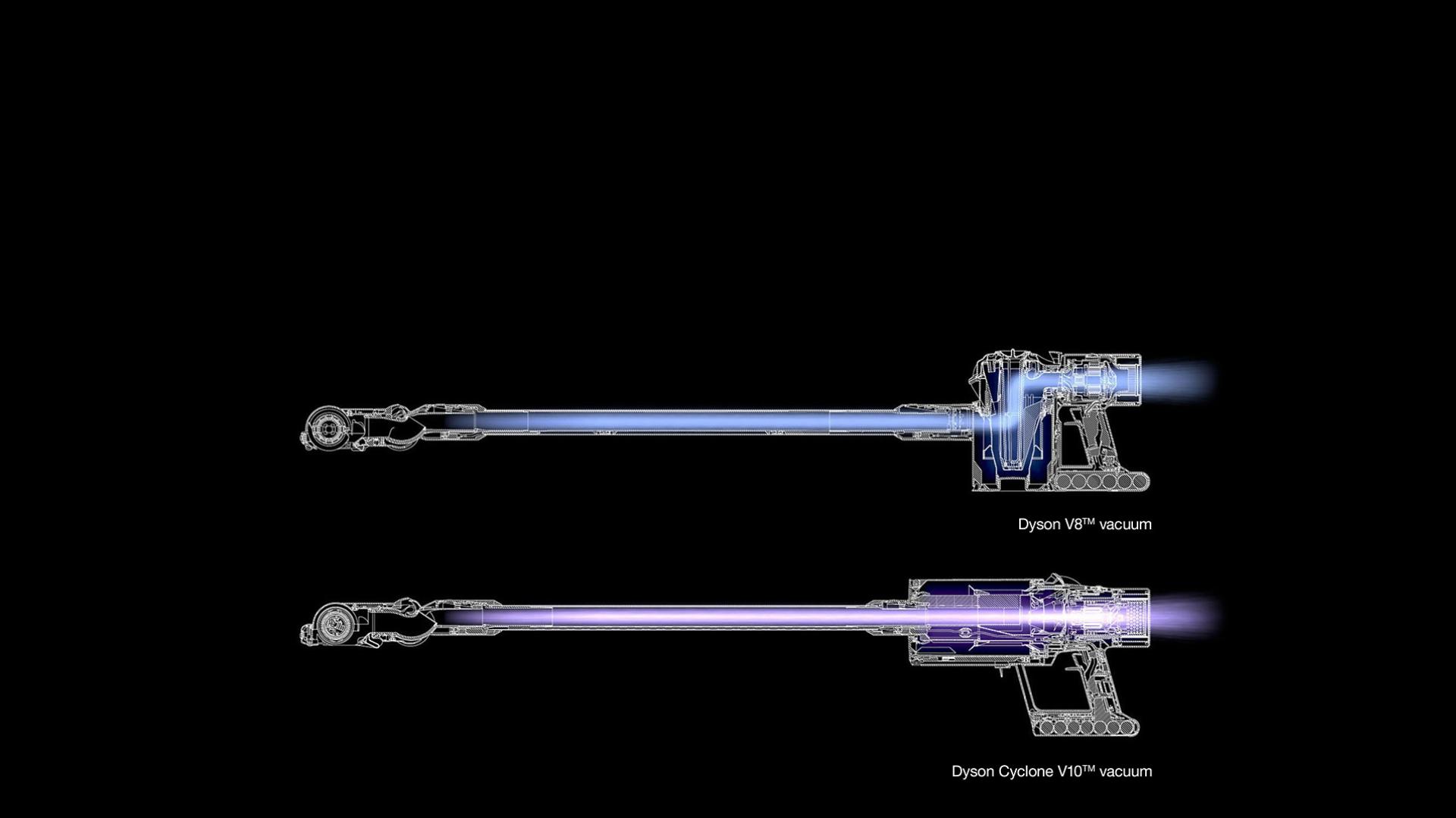

In-line configuration.

The ‘point and shoot’ alignment of the motor, bin and cyclone allows air to be drawn directly from the cleaner head into the cyclones in a straight line. This, combined with the more powerful Dyson digital motor V10, increases suction power to 20% more than the Dyson V8™ vacuum cleaner.

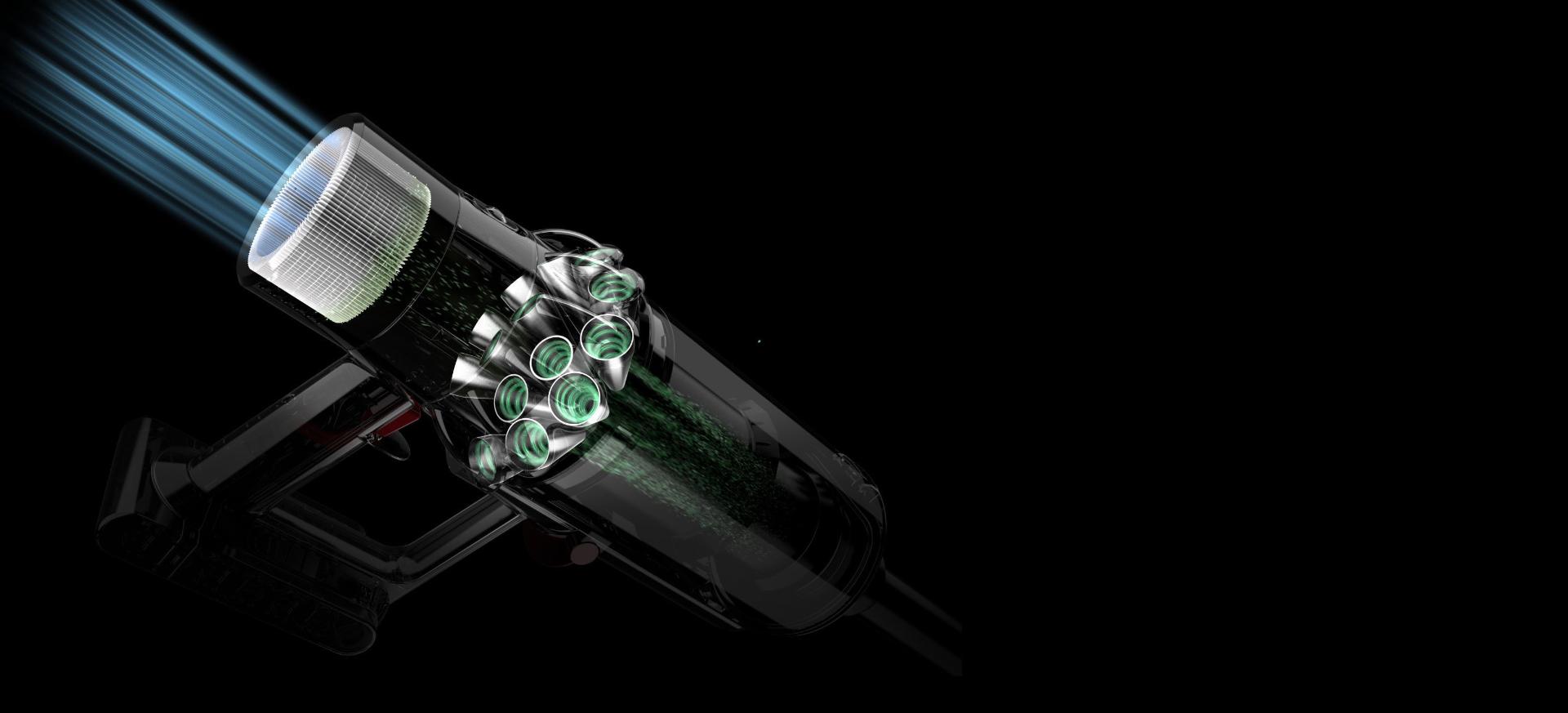

Whole-system filtration.

With an airtight gasket around the cyclone assembly and a pressurised rubber seal around the advanced filter, the whole system is fully sealed – preventing dust, allergens and bacteria from leaking back into the air. This means the vacuum retains 99.97% of dust as small as 0.3 microns, and expels cleaner air.² Pre- and post-motor filters are combined into one unit for easier maintenance.

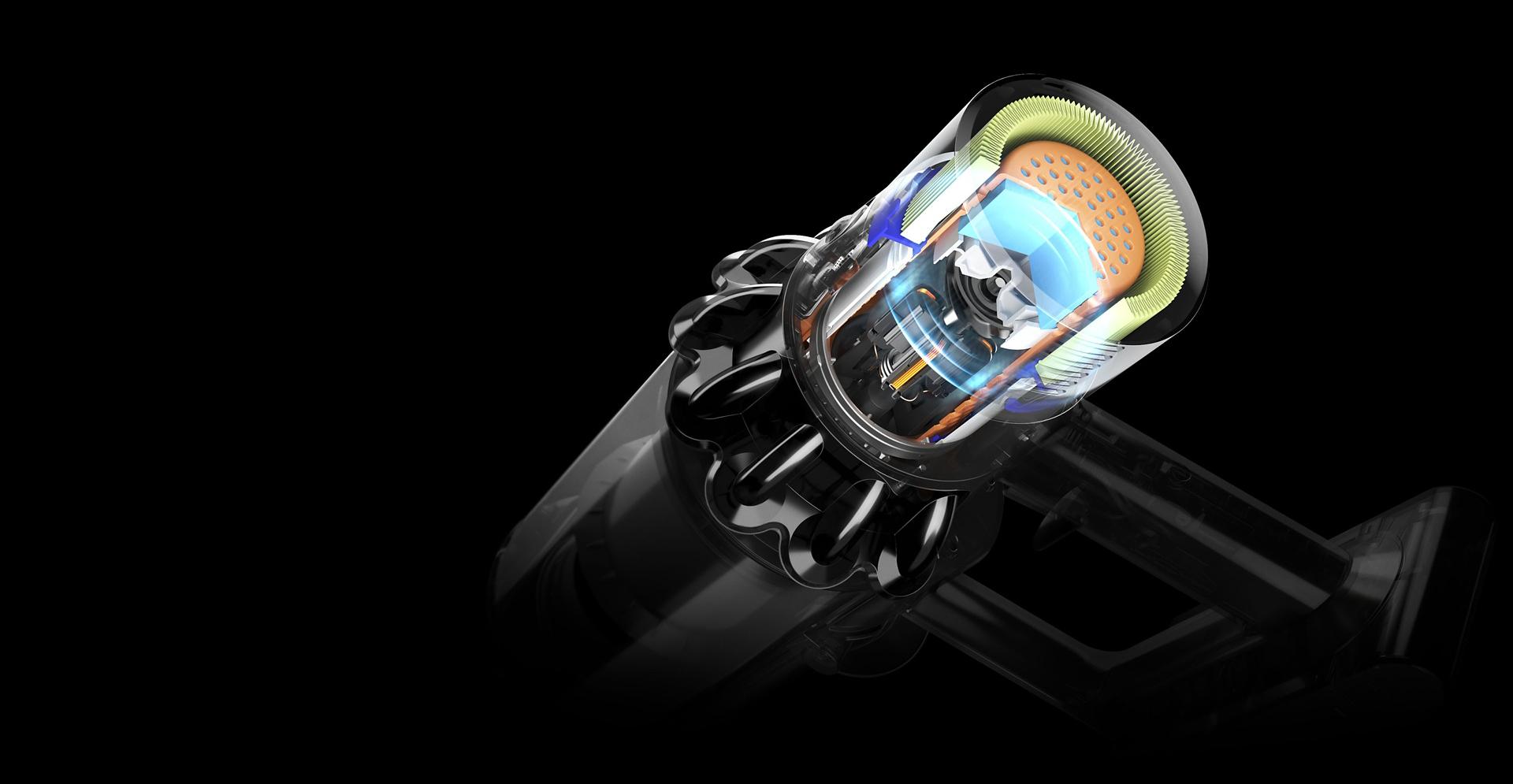

Acoustically engineered.

An aerodynamic motor housing regulates airflow paths around the motor, reducing noisy turbulence. It’s combined with acoustic material to absorb vibrations, a post-motor filter that dampens sound, and an acoustic baffle which further reduces volume by blocking the line of sight to the sound source.

Choose your model

  • Designed to deep clean homes with pets. For all floor types.
  • Up to 60 minutes suction power.4
  • 1 cleaner head and 7 extra tools.
  • 30 Day money back guarantee
NZ$1,099.00

Next

Engineering Story

1Suction tested to IEC 62885-2 CL5.8 and CL5.9 at the flexible inlet, against full-size market, loaded to binfull, tested in MAX mode.
2Tested against ASTM F1977-04 (particles sized 0.3-0.5 microns), tested in MAX mode.
*Stated runtime applies in suction mode 1 with a non-motorized tool attached.
