...A guide to your Dyson Gen5detect™ cordless vacuum
Getting started User manual  LCD screen Power modes Cleaner heads  Accessories  Battery  Maintenance
Register your machine
Register now to activate your guarantee, and for instant access to how-to guides, user manuals, and more. You can also receive tailored support, straight to your inbox.
Getting started
How to set up your Dyson Gen5detect™ vacuum
Watch our video guide to setting up your Dyson Gen5detect™ vacuum.
1Some tools may not be included
User manual
LCD screen
Getting to know your LCD screen
The LCD screen displays everything you need to know during each clean, including: the selected cleaning modes, the amount of particles being removed from the floor, your remaining run time, and alerts.
Beginning your clean
Your machine constantly measures the microscopic particles being picked up. These are displayed in a graph, grouped into four colour-coded size ranges: Microscopic, Fine, Medium, Coarse.
How the bars work
The bars grow and shrink, in real time, based on the volume of particles being removed as you clean. So you know when to keep cleaning, and when your floor area is clean.
What the bars mean
In Auto mode
Blue bars: High volume, increased suction
White bars: Medium volume
Green bars: Low volume, you can move on from that spot
In all other modes, white bars also represent a high volume of particles.
After your clean
At the end of your clean, the screen displays a summary of the particles that have been removed. Giving you scientific proof of a deep clean.
FAQs about the LCD screen
The particle count is a scientific measurement of the debris in your bin. Each bar represents a different size of dust particle. The bars rise faster when more debris of that size is vacuumed.
Reactive suction power works with all powered attachments when in auto mode, including the Digital Motorbar™ cleaner head, the Fluffy Optic™ cleaner head, and the Hair screw tool.
Yes. The graph works independently of the attachments, and can be used with all cleaner heads, tools and accessories.
The bars on the graph will slow down and turn green to show that less debris is being picked up, letting you know your area is clean.

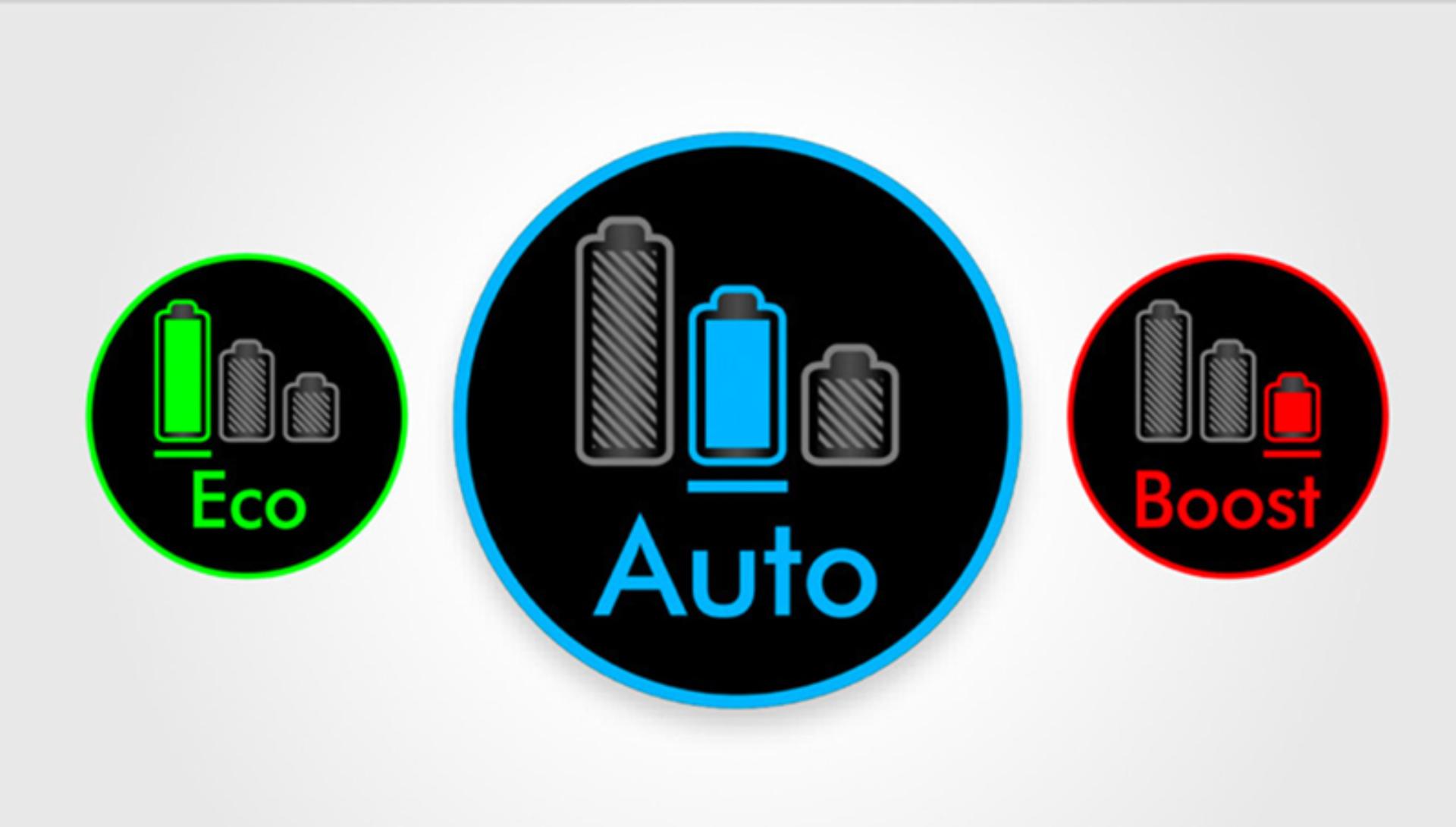

Power modes
-
Getting to know your power modes
Your Dyson Gen5detect™ has three power modes for different tasks. Simply change the power mode using a single button.
-
Auto mode
The optimum balance of power and run time. Attach your cleaner head or Hair screw tool to activate Auto mode. Suction power automatically adapts to dust levels.
Eco mode
Eco mode indicates the longest battery life of the three modes, giving you maximum run time for longer cleans all around your home.
Boost
Boost indicates the shortest battery life of the three modes. Designed for intensive spot cleaning of ground-in dirt.
Dyson recommends auto mode for the best experience. Suction power automatically increases when higher concentrations of dust are detected. Once the dust is removed, power returns to normal to conserve the battery.
Cleaner heads
Getting to know your cleaner heads
Your Dyson Gen5detect™ vacuum is engineered to operate with two cleaner heads, for different floor surfaces.
-
Digital Motorbar™ cleaner head
The Digital Motorbar™ cleaner head's Dynamic Load Sensing technology intelligently adapts suction power to different floors, while in Auto mode. Hair removal vanes automatically de-tangle hair from the brush bar as you clean.
-
Fluffy Optic™ cleaner head
New Fluffy Optic™ cleaner head illuminates the microscopic dust and dirt on hard floors. Anti-static carbon fibre filaments remove fine dust from hard floors and narrow gaps.
FAQs about cleaner heads
The blade of light is optimised to work on any smooth, hard floor – including white surfaces and wood laminate. Illumination is visible in most well-lit spaces. Direct sunlight (around 10,000+ lux) is not possible to outshine.
Yes.
The de-tangling comb on the brush bar has 56 polycarbonate teeth to prevent tangling around the bristles. The comb is always in contact with the brush bar as it spins to prevent wrapping, so hair is sucked straight into the bin.
Accessories
Dyson Gen5detect™ accessories
Your Dyson Gen5detect™ vacuum is equipped with Dyson-engineered tools to help you clean every surface and space around your home.
-
Built-in dusting and crevice tool
Transforms to a handheld in a click. The Built-in dusting and crevice tool is always at your fingertips for on-the-spot cleans.
-
Hair screw tool
Removes dust and hair from pet beds, mattresses and stairs. The de-tangling conical brush bar spirals hair straight into the bin – fast.
-
Combination tool
Two tools in one. For quick switching between cleaning and dusting, all around your home.
Need a different tool?
If you need attachments for other cleaning tasks around your home, click below to view the wide range of Dyson-engineered tools and accessories.
Dock set up and charging
*Only one dock type will be included in the box
Setting up your wall dock
Before setting up your wall dock, please: 1. Read all of the instructions carefully. 2. Download the user manual.
-
Step 1. Secure the backplate
Use the two holes in the backplate to mark out drill holes in the wall, at the minimum recommended height. Use the supplied 2 wall plugs and 2 screws to secure the backplate to the wall.
-
Step 2. Connect the dock
Slide the dock onto the backplate. Position the jack plug in the front casing. Make sure the charging cable is secured behind the front casing.
-
Step 3. Charge your machine
Push the jack cover down to firmly secure the plug. Switch on the power. Mount your Dyson Gen5detect™ vacuum in the wall dock to begin charging.
Setting up your floor dock
Before setting up your floor dock, please: 1. Read all of the instructions carefully. 2. Download the user manual.
-
Step 1. Assemble the dock
Place the base unit in a convenient position. Simply click the verticle stem into place. Next, click the charging cradle into place on top.
-
Step 2. Set up the charger
Run your charging cable connector through the hole located behind the docking cradle. Next, place the connector cover to secure it in place.
-
Step 3. Tidy the cable
Push the charging cable into the cable tidy channel on the back of the vertical stem.
-
Step 4. Attach the accessory holder
Fit the accessory holder into the back of the charging cradle. You can now store up to 6 accessories on the dock.
-
Step 5. Charge your vacuum
Plug in your charger and place your vacuum on the dock to charge.
-
Battery
Charging the battery
You can charge your battery either on or off the machine – and either on or off the wall dock and floor dok. Use an additional battery to quickly swap batteries during use, for extra cleaning time. Simply press the red battery release button – and slide the fully charged battery into place.
Getting the best out of your battery
Your battery is designed to be left plugged in, between cleans, so it's always ready to use.
-
Your battery is designed to be left plugged in, between cleans, so it's always ready to use.
-
When the green tick is displayed, your battery is fully charged and ready to use.
-
We recommend alternating batteries to prolong battery health.
FAQS about the battery and power modes
The LCD screen only uses up to 1.5 watts of power, which won't noticeably impact run time.
Both modes provide the optimal balance of power and run time. Auto mode works with all cleaner heads and the Dyson Hair screw tool, and automatically adjusts suction power to match the level of dust detected. Med mode is displayed instead of Auto mode when non-powered tools are attached, e.g. the Built-in dusting and crevice tool.
Maintenance
Maintaining your Dyson Gen5detect™ vacuum
Watch our maintenance guide for tips and step-by-step instructions on how to keep your machine performing at its best.
Looking after your filter
Your Dyson Gen5detect™ has a washable filter. Clean it regularly to prolong the filter's life and keep your machine performing at its best. Download the user manual for more information.
1. Twist and tap
Twist off your filter anti-clockwise, and pull it away from your machine. Tap it gently over a bin to remove loose dust. Run the tap with warm water, ready for the next step.
2. Rinse and wash
Wash the paper element of your filter first, foam facing downwards. Wash the foam element in the same way. Holding the filter on it's side, then run the water over the foam, gently rubbing your filter to remove the dirt. Repeat until the water runs clear.
3. Shake and dry
Empty and shake until no more water comes from the filter. Place the filter on its end, and leave to dry in a warm, well-ventilated place for at least 24 hours. Now wash your hands with anti-bacterial soap.
4. Fit and click
Please note! Your machine can be damaged if used with a damp filter. Check the filter unit is completely dry. Position the filter unit in place on the main body and twist clockwise until it clicks into place.
Further maintenance tips
-
How to clean the Fluffy Optic™ brush bar
You can wash your Fluffy Optic™ cleaner head's brush bar in warm water.
-
How to empty and clean the bin
Overfilling the bin can reduce suction and affect the accuracy of the particle count. To maintain suction, empty as soon as debris reaches the MAX marker.
-
How to check for blockages
Your LCD screen will alert you if there's a blockage in your machine's airways. On-screen animation shows you which airflow pathways to check.
FAQs about maintenance
Your machine will pulse seven times to alert you if there's a blockage. You can follow the animated guide on your LCD screen to clear it.
The LCD screen on your machine will remind you when it's time to clear your filter. This will usually be around once a month, but may be more frequent if you use your machine more heavily. After cleaning the filter, always leave it to dry for at least 24 hours. You must ensure it's completely dry before refitting. We recommend following the cleaning instructions and cleaning by hand. The filter is not suitable for dishwasher use.
